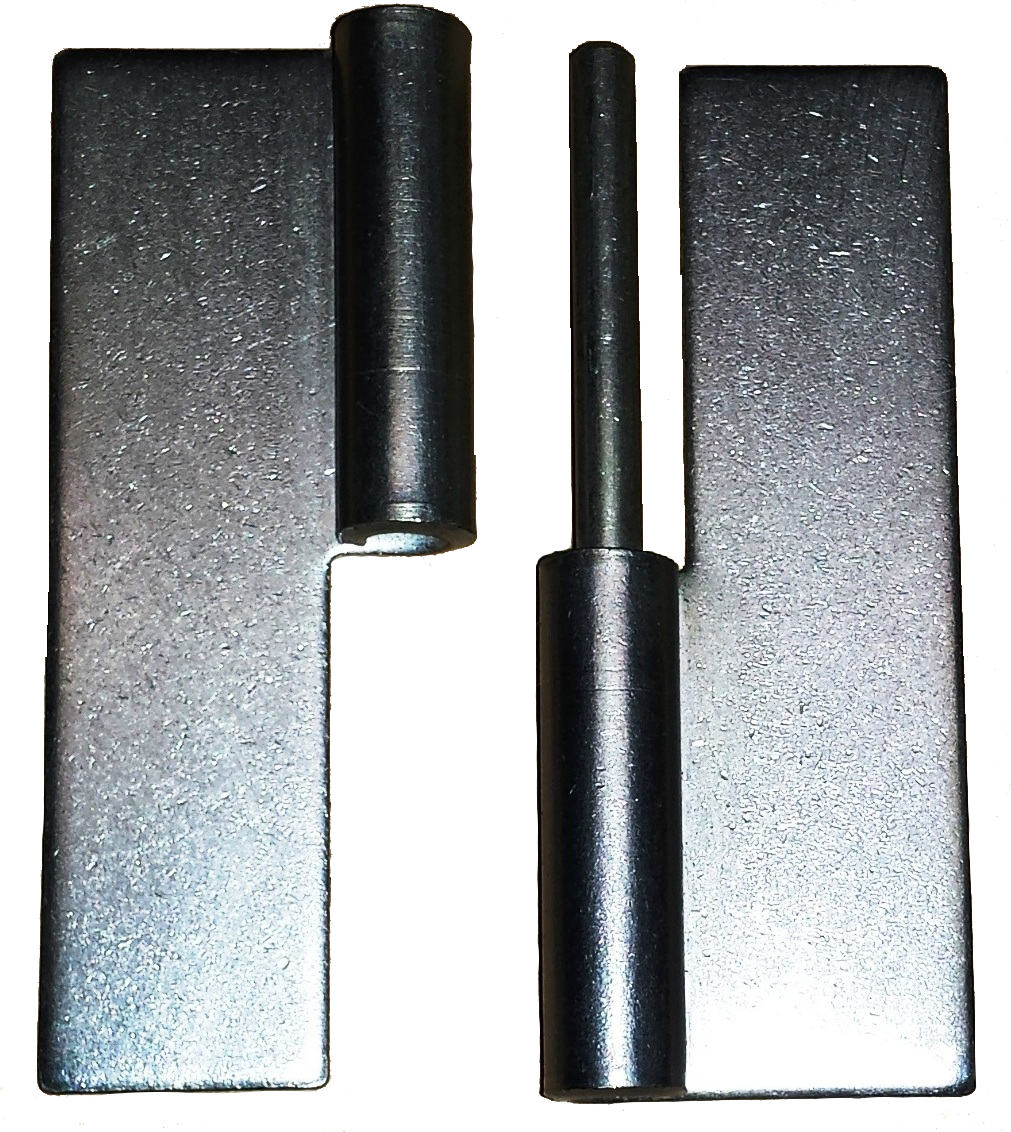

SLIP-JOINT HINGES

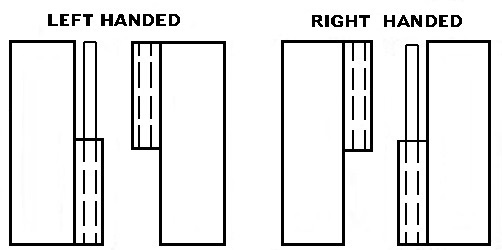

Slip-joint hinges are also named "Take Apart", or "Lift Off" hinges as well. These are commonly used when requirements call for doors to be removed. Indicate right or left hand when ordering. All hinges can be pierced, countersunk, and plated to your specifications. If you do not see the size want listed, please contact us. It is our goal to provide you with what you need.

latch hinge diagram

Aluminum with Stainless Pin

STOCK NO.

THICKNESS

GAUGE

LENGTH

OPEN

WIDTH

PIN DIA.

SJA076168-200

.075

14

2

1.68

.187

Steel

STOCK NO.

THICKNESS

GAUGE

LENGTH

OPEN

WIDTH

PIN DIA.

SJS075168-200

.075

14

2

1.68

.125

SJS076187-250

.075

14

2-1/2

1.87

.187

SJS076200-200

.075

14

2

2

.187

SJS096250-250

.093

13

2-1/2

2.5

.187

Stainless Steel

STOCK NO.

THICKNESS

GAUGE

LENGTH

OPEN

WIDTH

PIN DIA.

SJC076168-200

.075

14

2

1.68

.187

SJC076168-200

.075

14

2

1.68

.187

SJC076168-200H

.075

14

2

1.68

.187

SJC076250-250

.075

14

2-1/2

2-1/2

.187

SJC096200-300

.093

13

3

2

.187

SJC097300-300

.093

13

3

3

.250

*H = Holes

Click Here to Enlarge Charts

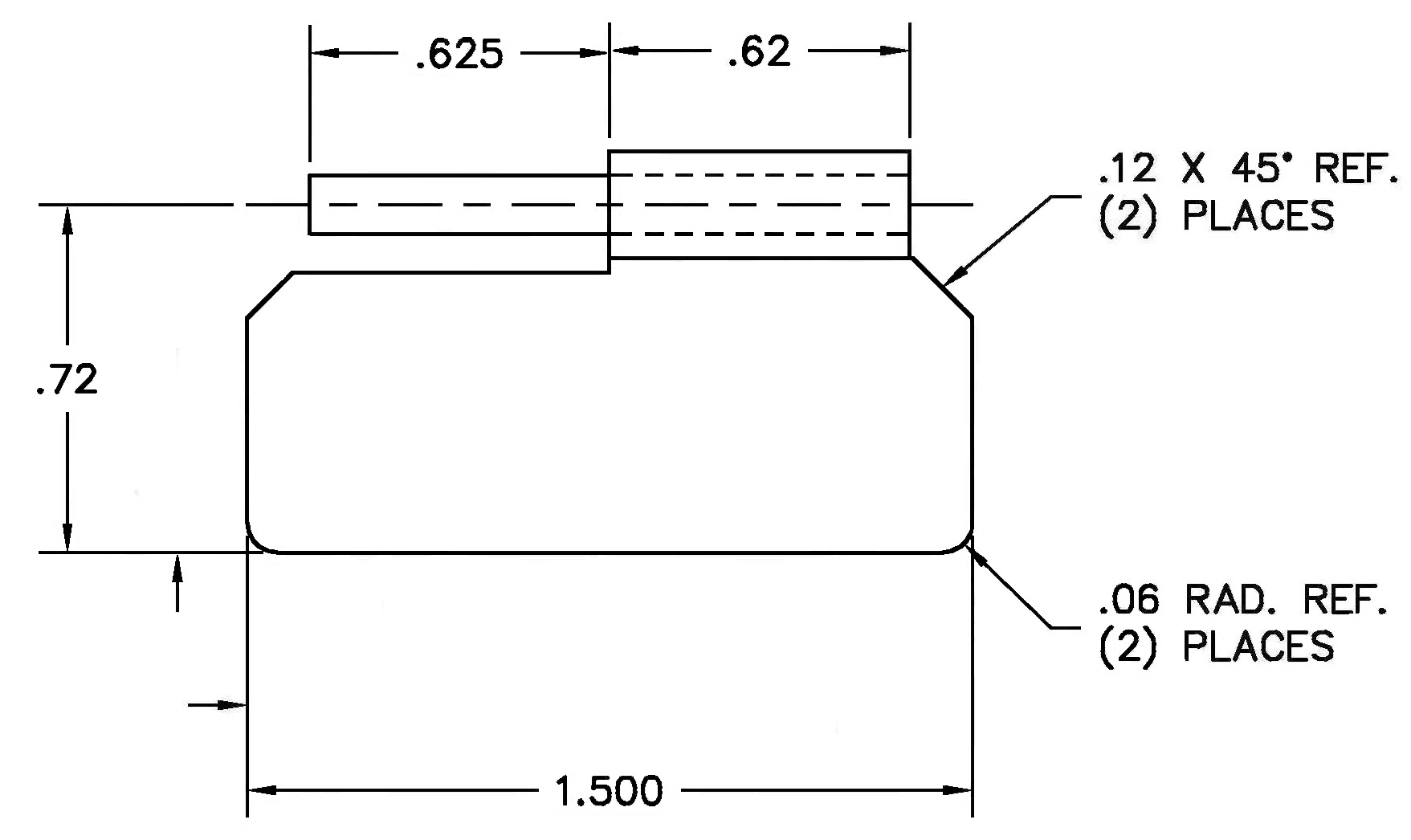

PART NO.

MATERIAL

THICKNESS

LENGTH

OPEN

WIDTH

PIN DIA.

SJA055144-150

Aluminum

.050

1-1/2

1.44

.120

SJS051144-150

Steel

.050

1-1/2

1.44

.120

SJC055144-150

Stainless Steel

.050

1-1/2

1.44

.120

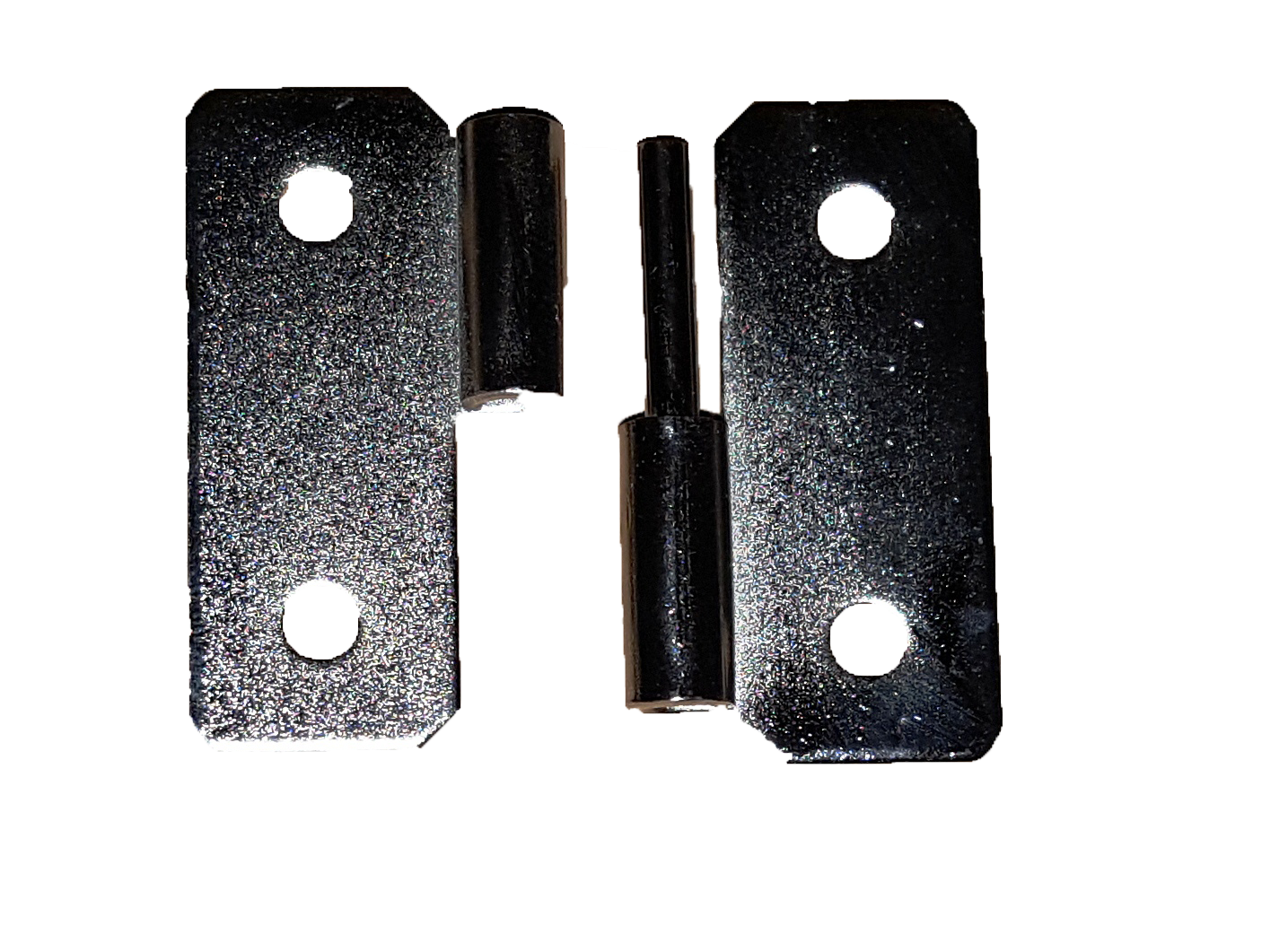

SJS055144-150H

Nickel Plated

.050

1-1/2

1.44

.120

*H = Holes

Click Here to Enlarge Charts

  • Prints with or without holes are available upon request

  • Listed above are our standard stock items. If your requirements are different, just call us! Nothing is too "special" for us.

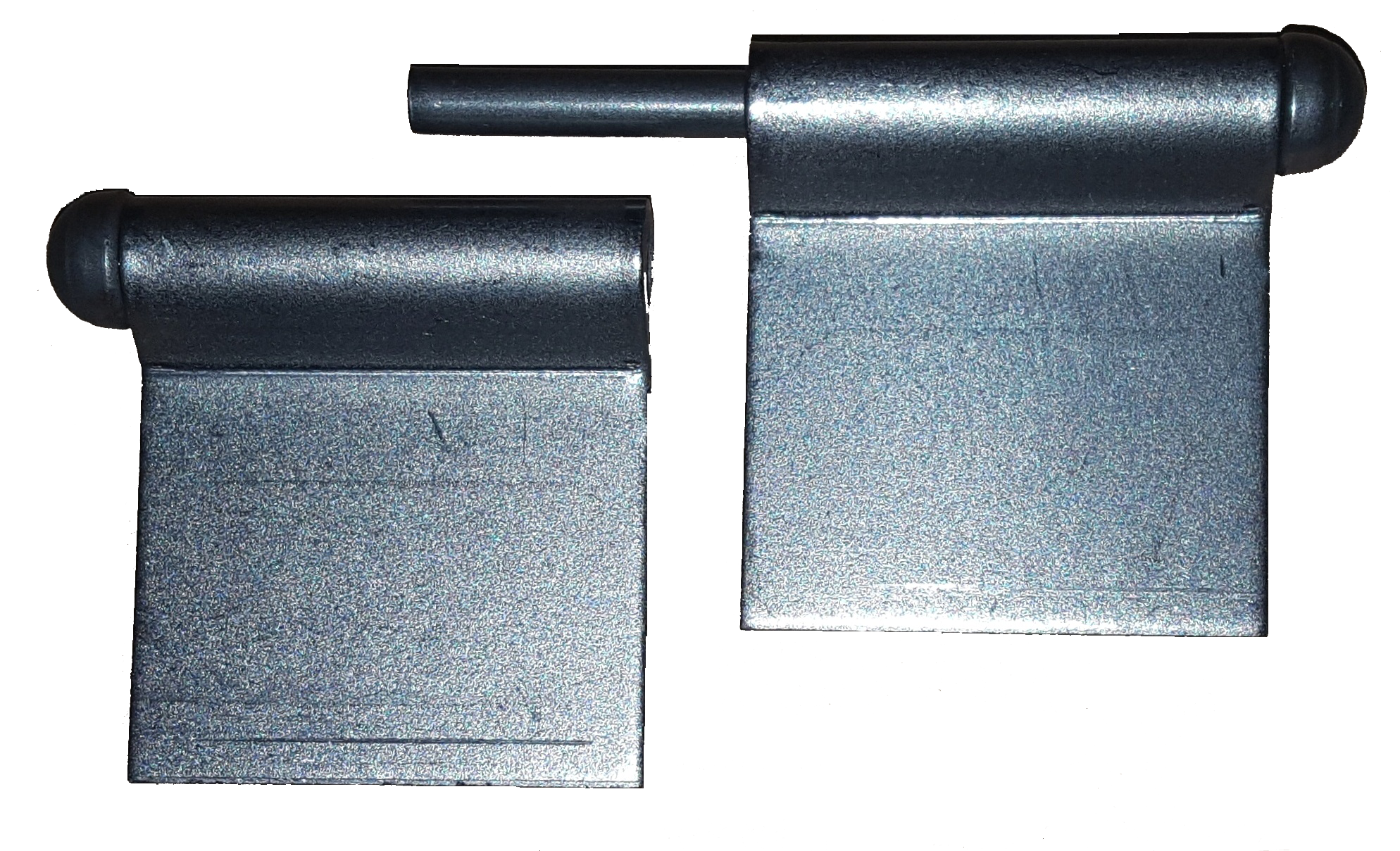

  • FLAG HINGES

    Flag hinges are commonly used when requirements call for doors to be removed. Indicate right or left hand when ordering. All hinges can be pierced, countersunk, swaged and plated to your requirements

    Steel

    latch hinge diagram

    STOCK NO.

    THICKNESS

    GAUGE

    LENGTH

    OPEN

    WIDTH

    PIN

    DIA.

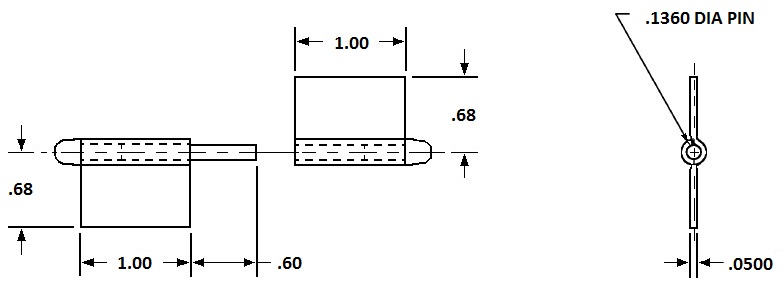

    FLG055356-200

    .050

    18

    2

    .68

    .130

    latch hinge diagram

    STOCK NO.

    THICKNESS

    GAUGE

    LENGTH

    OPEN

    WIDTH

    PIN

    DIA.

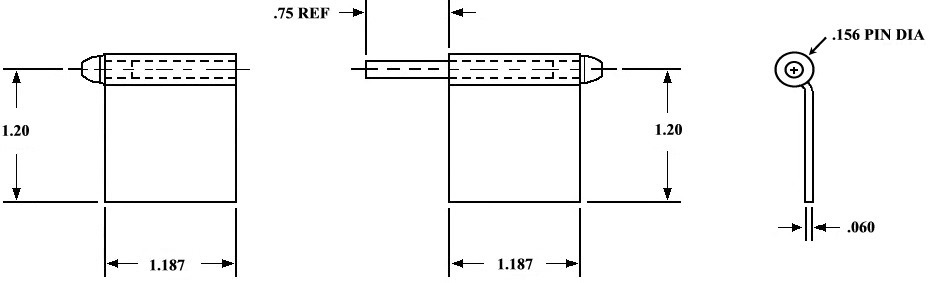

    FLG064120-237

    .062

    16

    2.37

    1.20

    .156

  • Listed are our standard stock items, if your requirements are different, just call us! Nothing is too "special" for us.

    Stainless Steel

    STOCK NO.

    THICKNESS

    GAUGE

    LENGTH

    OPEN

    WIDTH

    PIN

    DIA.

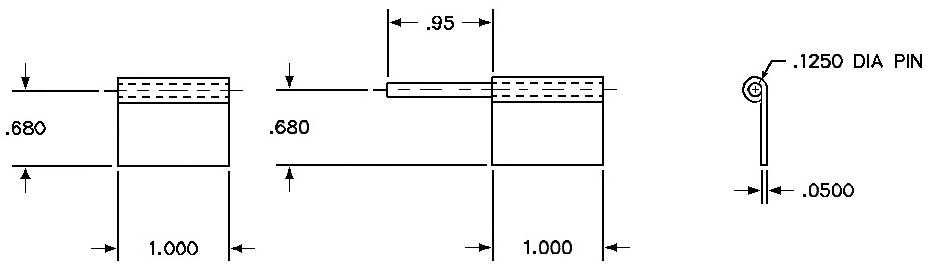

    FLGC055100-200

    .050

    18

    2

    1

    .120
