CONTINUOUS HINGES
Northeast Hinge
offers both standard and custom
continuous hinges. Our large inventory
of hinges allows us to same day ship
most orders. We can design and
manufacture continuous hinges to your
specifications or our design team can
assist you with your requirements.
A continuous hinge is a
plastic piano type hinge made of flexible
alloyed polymers. Available in 50' and
100' rolls and in open widths from 1
1/8" to 3". Hinges can be cut to size
for virtually any application.
Our one piece continuous
hinge will not rust, tarnish, corrode,
peel or bind, and never needs
lubrication.
Typical Continuous
Hinge Cross Section

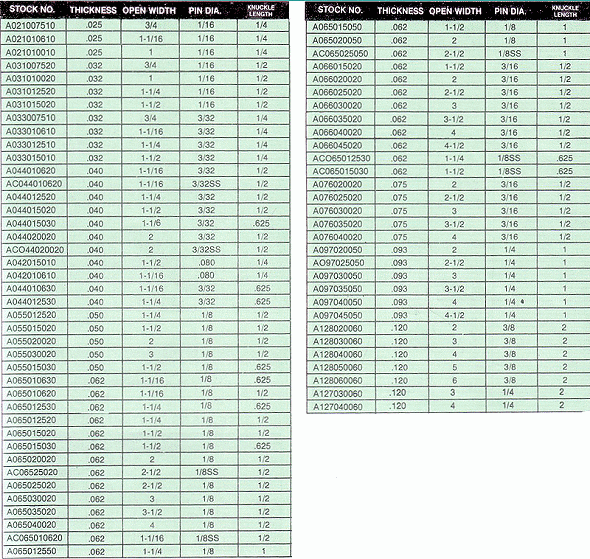

ALUMINUM CONTINUOUS HINGES
MILL FINISH - EQUAL LEAVES - FULL HARD ALUMINUM PIN
(UNLESS OTHERWISE SPECIFIED)
STOCK LENGTHS 72" AND 96"
click chart for larger
view

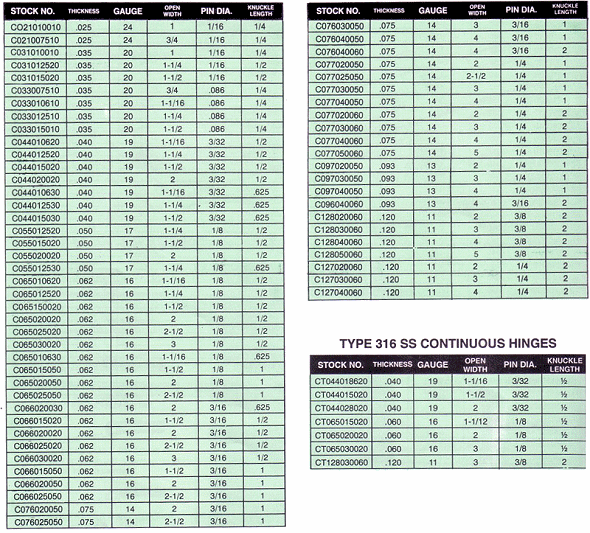

STAINLESS STEEL CONTINUOUS HINGES
2-B MILL FINISH - TYPE 304 STAINLESS STEEL
EQUAL LEAVES - STAINLESS STEEL PINS
STOCK LENGTHS 72" AND 96"
click chart for larger
view
UNPLATED STEEL CONTINUOUS HINGE
EQUAL LEAVES -
STEEL PINS
STOCK LENGTHS 72" AND 96"
click chart for larger
view

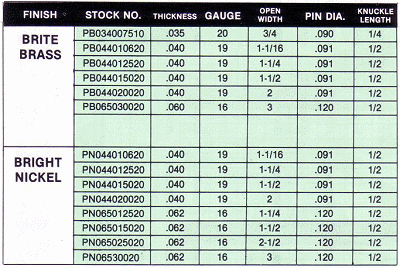

PRE-PLATED CONTINUOUS HINGES WITH HOLES
EQUAL LEAVES - STEEL
PINS
STOCK LENGTHS 72"
click chart for larger
view
ZINC PLATED HINGES
PZ066020020-72H .060 2 3/16 1/2
PZ076015050-72H .075 1 1/2
3/16 1
SOLID BRASS HINGES
WITH HOLES
B044012520-72H .040 1 1/4
3/32 1/2
B044015020-72H .040 1 1/2 3/32 1/2
B044020020-72H .040 2 3/3 2 1/2
STAINLESS STEEL CONTINUOUS HINGES WITH HOLES
BRIGHT ANNEAL FINISH
click chart for larger
view
Any other length and perforating patterns
available upon request.
Bright Anneal instead of bright nickel.
|
