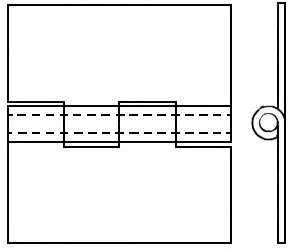

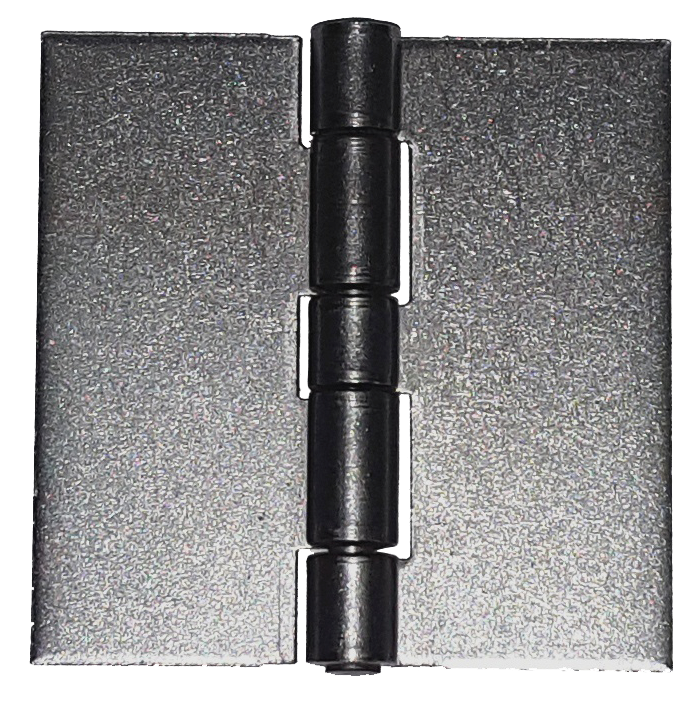

BUTT HINGES
We carry a wide variety of butt hinges in stock. Listed is a small representation of what is readily available. You can choose from spun, staked, or loose pins. All hinges are also available swaged, formed, plated or painted. Please call us with your requirement.
ALUMINUM BUTT HINGE
|
STOCK
NO.
|
THICKNESS
|
GAUGE
|
OPEN
WIDTH
|
LENGTH
|
PIN
DIA.
|
|
BTAC055150-150SP
|
.050
|
18
|
1-1/2
|
1-1/2
|
1/8
|
|
BTAC065200-200SP
|
.062
|
16
|
2
|
2
|
1/8
|
|
BTAC076200-200SP
|
.075
|
14
|
2
|
2
|
3/16
|
|
BTA127300-300SP
|
.120
|
11
|
3
|
3
|
1/4
|
|
BTAC127400-400SP
|
.120
|
11
|
4
|
4
|
1/4
|
*SP = Spun Pin *BTAC = Aluminum with Stainless Pin
Click Here to Enlarge Charts
STAINLESS STEEL BUTT HINGE
|
STOCK
NO.
|
THICKNESS
|
GAUGE
|
OPEN
WIDTH
|
LENGTH
|
PIN
DIA.
|
|
BTC055150-150SP
|
.050
|
18
|
1-1/2
|
1-1/2
|
1/8
|
|
BTC065150-200S
|
.062
|
16
|
1-1/2
|
2
|
1/8
|
|
BTC065200-200SP
|
.062
|
16
|
2
|
2
|
1/8
|
|
BTC066150-200S
|
.062
|
16
|
1-1/2
|
2
|
3/16
|
|
BTC076200-200SP
|
.075
|
14
|
2
|
2
|
3/16
|
|
BTC076250-250SP
|
.075
|
14
|
2-1/2
|
2-1/2
|
3/16
|
|
BTC096200-300SP
|
.090
|
13
|
2
|
3
|
3/16
|
|
BTC127250-250SP
|
.120
|
11
|
2-1/2
|
2-1/2
|
1/4
|
|
BTC127300-300SP
|
.120
|
11
|
3
|
3
|
1/4
|
|
BTC127600-600SP
|
.120
|
11
|
6
|
6
|
1/4
|
|
BTC188400-400SP
|
.187
|
7
|
4
|
4
|
3/8
|
*S = Staked Pin *SP = Spun Pin
Click Here to Enlarge Charts
STEEL BUTT HINGE
|
STOCK
NO.
|
THICKNESS
|
GAUGE
|
OPEN
WIDTH
|
LENGTH
|
PIN
DIA.
|
|
BTS033150-100S
|
.035
|
20
|
1-1/2
|
1
|
11/16
|
|
BTS033106-125S
|
.035
|
20
|
1-1/16
|
1-1/4
|
11/16
|
|
BTS033150-150S
|
.035
|
20
|
1-1/2
|
1-1/2
|
11/16
|
|
BTS033200-200S
|
.035
|
20
|
2
|
2
|
11/16
|
|
BTS055150-150SP
|
.050
|
18
|
1-1/2
|
1-1/2
|
1/8
|
|
BTS065150-150S
|
.062
|
18
|
1-1/2
|
1-1/2
|
1/8
|
|
BTS065150-150SP
|
.062
|
16
|
1-1/2
|
1-1/2
|
1/8
|
|
BTS065150-200SP
|
.062
|
16
|
1-1/2
|
2
|
1/8
|
|
BTS065200-200S
|
.062
|
16
|
2
|
2
|
1/8
|
|
BTS065200-200SP
|
.062
|
16
|
2
|
2
|
1/8
|
|
BTS076200-200SP
|
.075
|
14
|
2
|
2
|
3/16
|
|
BTS096200-300SP
|
.090
|
13
|
2
|
3
|
3/16
|
|
BTS097300-300SP
|
.090
|
13
|
3
|
3
|
1/4
|
|
BTS127250-250SP
|
.120
|
11
|
2-1/2
|
2-1/2
|
1/4
|
|
BTS127300-300L
|
.120
|
11
|
3
|
3
|
1/4
|
|
BTS127300-300SP
|
.120
|
11
|
3
|
3
|
1/4
|
|
BTS127350-350SP
|
.120
|
11
|
3-1/2
|
3-1/2
|
1/4
|
|
BTS127300-400SP
|
.120
|
11
|
3
|
4
|
1/4
|
|
BTS127400-400L
|
.120
|
11
|
4
|
4
|
1/4
|
|
BTS127400-400SP
|
.120
|
11
|
4
|
4
|
1/4
|
|
BTS127500-500SP
|
.120
|
11
|
5
|
5
|
1/4
|
|
BTS188400-400SP
|
.187
|
7
|
4
|
4
|
3/8
|
|
BTS188600-600SP
|
.187
|
7
|
6
|
6
|
3/8
|
*S = Staked Pin *SP = Spun Pin *L = Removable Pin
Click Here to Enlarge Charts
Any of the butt hinges above may be modified to include holes. Email us your print and we can provide a quote.

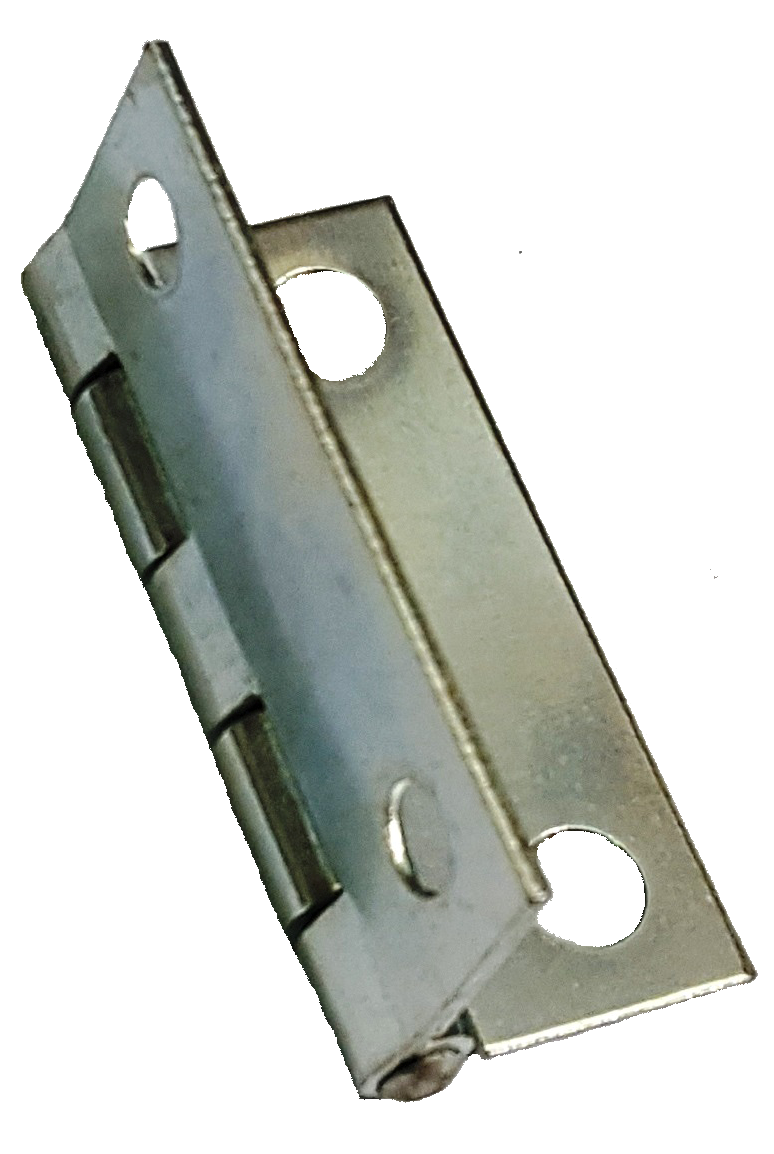

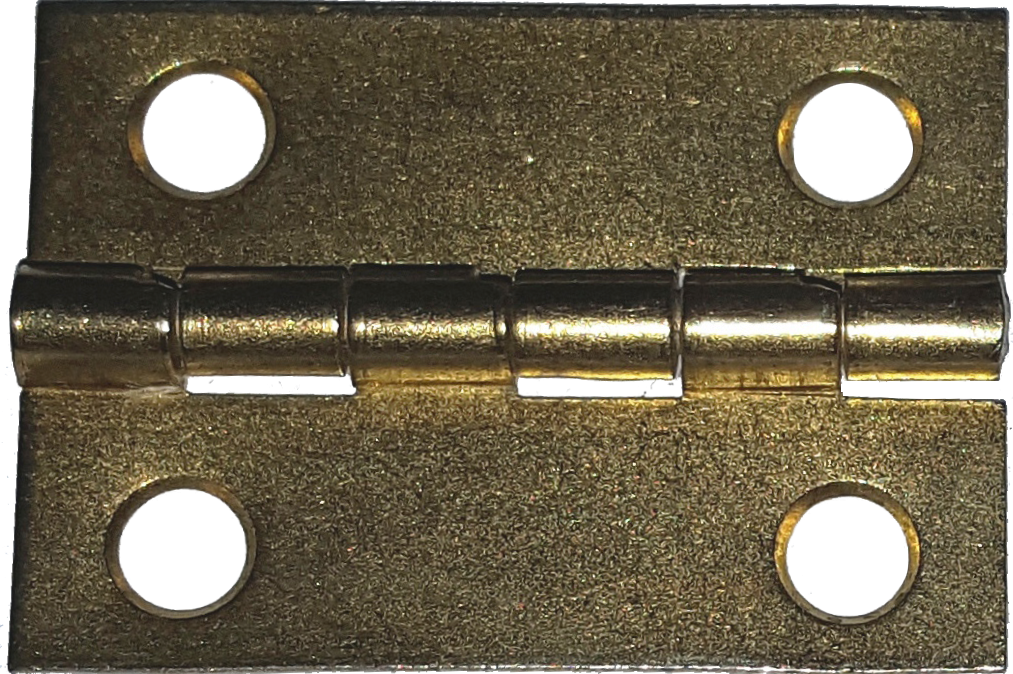

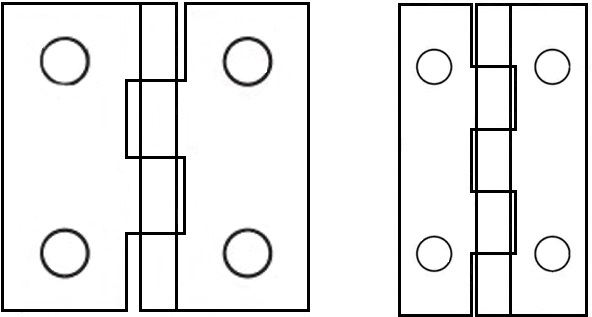

PLATED BUTT HINGES WITH HOLES
These hinges are light weight for smaller
applications such as jewelry boxes, picnic
baskets, and many other small craft items. The
hinges have a staked pin and 2 holes in each
leaf.
|
STOCK NO.
|
FINISH
|
THICKNESS
|
GAUGE
|
OPEN
WIDTH
|
LENGTH
|
PIN
DIA.
|
|
BTPN021075-100H
|
Nickel
|
.025
|
24
|
3/4
|
1
|
.062
|
|
BTPN033106-100H
|
Nickel
|
.035
|
20
|
1-1/16
|
1
|
.086
|
|
BTPN033125-125H
|
Nickel
|
.035
|
20
|
1-1/4
|
1-1/4
|
.086
|
|
BTPN042125-150H
|
Nickel
|
.040
|
19
|
1-1/4
|
1-1/5
|
.080
|
|
BTPB021075-100H
|
Brass
|
.025
|
24
|
3/4
|
1
|
.062
|
|
BTPB033106-100H
|
Brass
|
.035
|
20
|
1-1/16
|
1
|
.086
|
|
BTPB033200-100H
|
Brass
|
.035
|
20
|
2
|
1
|
.086
|
Click Here to Enlarge Charts
