LATCH HINGES AND SPRING RELEASE HINGES

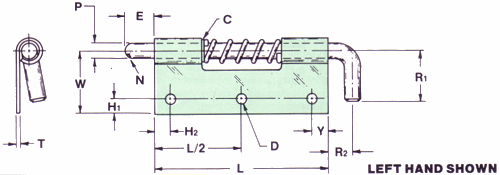

LATCH HINGES

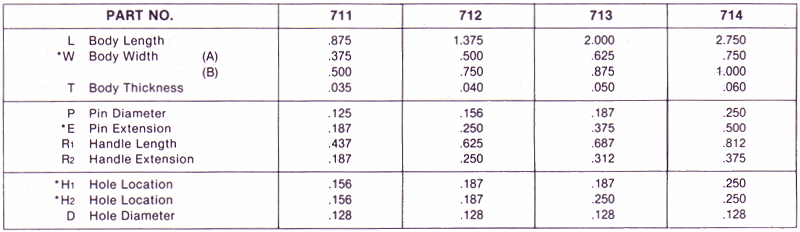

DIMENSIONS (STANDARD SIZES SHOWN)
* SPECIALS AVAILABLE UPON REQUEST
click for a larger view of
chart
*DIMENSIONS THAT CAN BE ALTERED TO MEET YOUR
SPECIFICATIONS
POINT STYLE

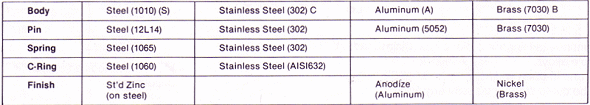

Material
click for a larger
view of chart
Available in Right Hand (R) or Left Hand
(L) models. Special forms, offsets,
swaging or welding projections
available. Latch can be furnished
assembled, unassembled, or body only.

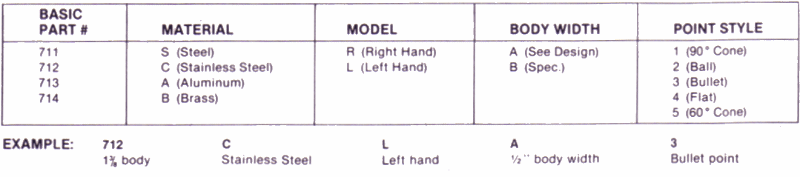

Ordering
Information
click for a larger
view of chart

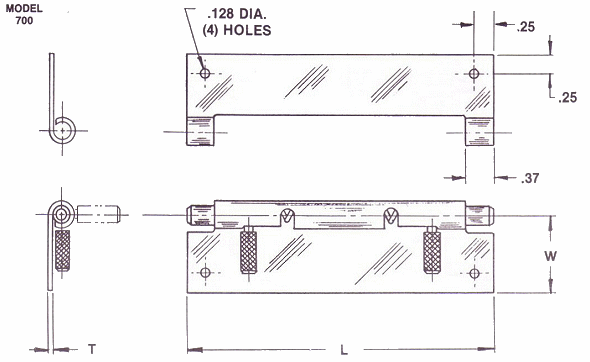

SPRING RELEASE HINGES
 Spring release hinges combine a hinge
and a latch in a standard piece of
hardware. The spring release hinge has
either a pair of spring-loaded handles
or a single handle, which pulls toward
the center to release the body or door
from the keeper. An alternate style
relies on a an engagement hole or slot
in the adjoining surface. Installation
is simple and inexpensive using screws,
rivets or by welding. All styles are
manufactured to close tolerances. End
play and side play are held to a
minimum, insuring a precision fit and
smooth operation.
E-mail us your special requirements and we will promptly
get back to you with a cost saving quote.
