WELD ON HINGES | BARREL WELD ON
HINGES

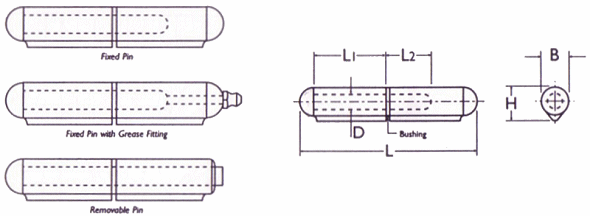

 Weld on hinges and barrel weld on hinges
have many applications. We stock many
sizes in steel, stainless and aluminum.
Optional grease fittings prevent
corrosion. Weld on hinges offer less
side play and much better axial
alignment than traditional hinges.
Weld on hinges have specially designed
leaves for welding installation. All
come with a bushing between the two
leaves.
The weld on hinge can also be customized
to meet your unique specifications.

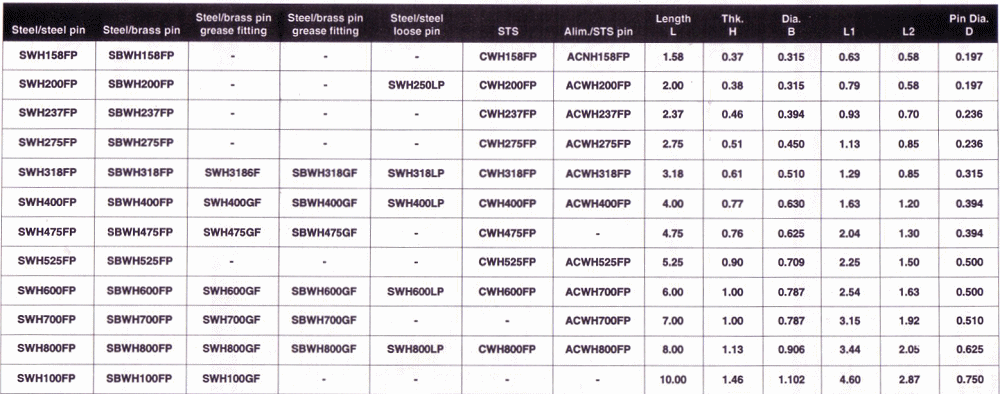

click for larger view of
chart
Note: All dimensions are in decimal inches.
For steel hinges, bushing is brass. On
stainless steel and aluminum hinges, bushing
is stainless steel.
E-mail us your special requirements and we will promptly
get back to you with a cost saving quote.
