Northeast Hinge Distributors, Inc.

Hinge Manufacturer and Distributor Spring Hinges
- Stainless Steel Spring Hinges, Single Acting Spring Hinge

hinges




SPRING HINGES

Single Action Spring Hinges, Double Action Spring Hinges and Adjustable Stainless Steel Spring Hinges. Spring Hinges in stock and made to order.

We have spring hinges in stock or they can be made to order to suit your requirements.

Spring loaded hinges are available in any material, gauge, width and length.  Hinges may have single or multiple springs in a sprung open or sprung closed position. Call with your application with the size and weight to be held open or closed.

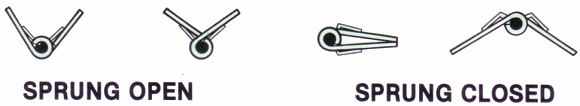

spring hinge diagram, open spring hinge, closed spring hinge

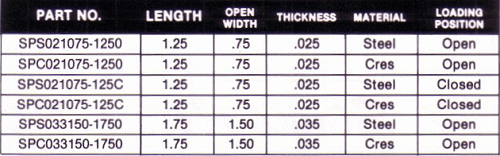

spring hinge chart

THE ABOVE SPRING HINGES ARE USUALLY STOCKED ITEMS. We can custom make spring hinges to your requirements or from your blueprints. E-mail us today.


ADJUSTABLE STAINLESS STEEL SPRING HINGES

stainless steel spring hinge diagram

Primarily used on pool gates and around corrosive environments where a spring is required. Adjustability allows for different tension, for different size gates or doors. It is recommended that a minimun of two spring hinges be used for each application.

  • All stainless construction

  • Surface mount

  • Adjustable tension

  • Loose pin

  • Available in 3 sizes 3" x 3", 3" x 4", 4" x 4"


SINGLE ACTING SPRING HINGES

Full Mortise

Features:

Uses:

  • UL LIsted for fire door applications

  • Non-handed

  • Steel material

  • Easily adjusted spring tension

  • Screw hole pattern conforms to ANSI specifications

  • Pivot point aligns with hinges of the same size

  • Minimizes cost of installing a door closing device on industrial, commercial, institutional and residential applications

  • Used to convert doors to self-closing in existing buildings

  • For use in hotels, motels, apartments, dormitories, residences, etc. where doors are required to be self closing (always verify local fire code requirements)

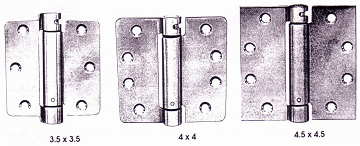

single acting spring hinges



Order by Phone
Call 1-800-882-0120



Office Hours
Monday thru Friday
8:00 - 4:30 (US Eastern Time Zone)

E-mail us your special requirements and we will promptly
get back to you with a cost saving quote.
