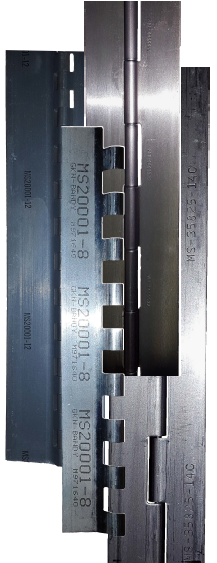

MILITARY CONTINUOUS HINGE

GOVERNMENT SPECIFICATIONS / MILITARY STANDARDS

MS20001 Series
Hinge Pins (MS20253 and A-A-55486)
MS20257 Series
MS-35000 Series
AA-55000 Series

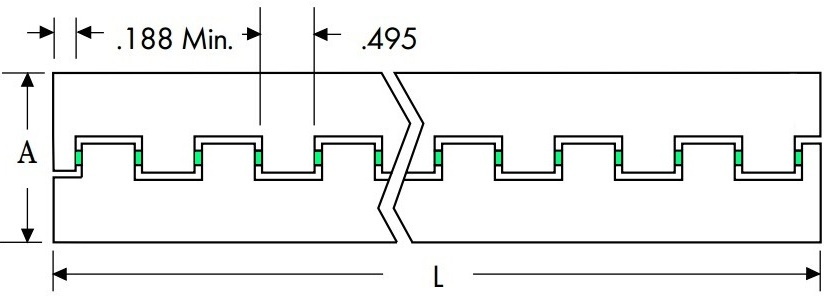

MS20001 SERIES

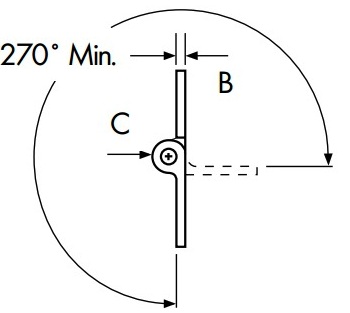

MS20001 SERIES CONTINUOUS HINGES

Type 2024-T3511 Extruded Aluminum



A

B-Leaf Thickness

C

DASH NO.

OPEN

WIDTH

MAXIMUM

MINIMUM

PIN

DIA.

-2

1.062

.056

.044

.090

-3

1.250

.056

.044

.090

-4

1.500

.056

.044

.090

-5

1.750

.056

.044

.090

-6

2.000

.056

.044

.090

-8

2.000

.076

.044

.180

-9

2.500

.056

.044

.090

-10

2.750

.056

.044

.090

-12

3.375

.115

.103

.090

-14

3.719

.163

.149

.129

-16

3.938

.210

.196

.180

SPECIFY

  • P = Anodized per Mil-A-8625, Type II
  • C= Alodine per Mil-DTL-5541
  • A= Aluminum Alloy 7075-T 73511

    Click Here to Enlarge Charts


    MILITARY HINGE PINS

  • Use Cadmium Plated Corrosion Resistant Steel
     with Aluminum Alloy Hinge.
  • Use Passivated Corrosion Resistant Steel Pin
     with Corrosion Resistant Steel Hinge.

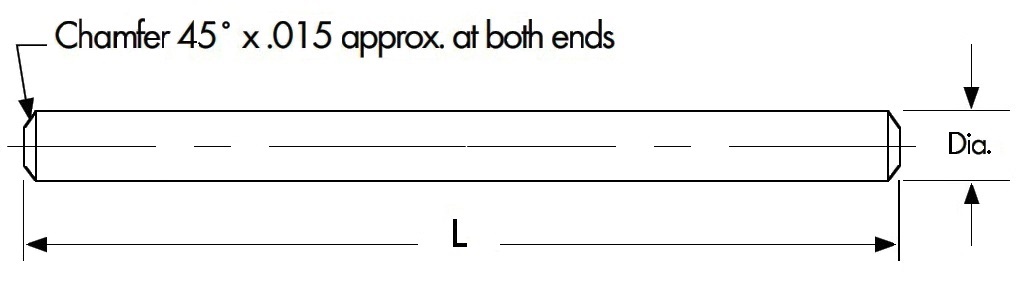

    MS20253 and A-A-55486 hinge pins

    for MS20257 and MS20001 series

    Continuous Hinges

    Dash No.

    Cadmium Plated

    Passivated

    Diameter

    -P1

    -1

    .062

    -P2

    -2

    .089

    -P3

    -3

    .117

    -P4

    -4

    .179

    -P5

    -5

    .129

    Click Here to Enlarge Chart


    MS20257 SERIES

    MS-20257 SPECIFICATION / SUPERSEDES AN-257

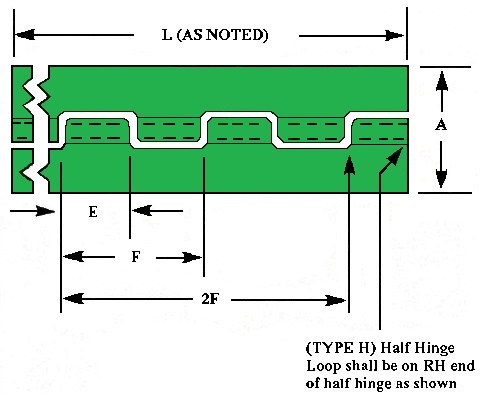

    Impress "MS-20257-(Size Dash No.)" at regular intervals along length of hinge so that any three inch length will have at least one complete identification in figures not less than .06 inch high. Depressed figures shall not exceed .010 inch in depth. Designation for anodizing and for length shall not be included in marking.

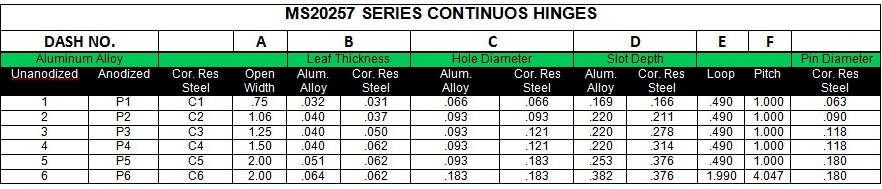

    Click Here to Enlarge Chart

    All MS20257 series stock lengths are 72 inches long.
    (Whole hinges supplied with pins. Half hinges supplied without pins)

    (a) Complete Hinges are furnished w ith a pin of the same length.
    (b) Second dash number indicates length (L) expressed in inches and hundredths not exceeding stock length of table. End loops and/ or tangs must never exceed a full loop or tang, and both ends must equal within .020 inch.
    (c) Tolerance shall be .008 on each dimension for F, 2F, 3F, etc. and shall not be cumulative.

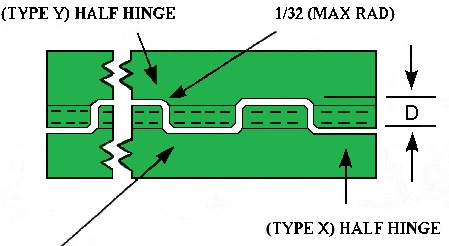

    (d) Types X and Y Half Hinges can be made from Type H Half Hinge but will not be stocked or procured by service activities.
    (e) Hinge pins shall be in accordance with MS20253. Use Cadmium Plated Corrosion Resistant Steel Pin and Aluminum Alloy Hinge. Use Passivated Cor rosion Resistant Steel Pin with Corrosion Resistant Steel Hinge.

    MATERIAL

  • Aluminum Alloy, 5052, H24 or H34 per QQ-A-250/8.
  • Corrosion Resistant Steel per QQ-s-766, type 301, 302, or 304.
  • FINISH

  • Aluminum Alloy, Anodized. MIL-A-8625t, type II or none depending on coding.
  • Corrosion Resistant Steel, none.


  • Remove all burrs and sharp edges. Dimensions in inches, unless otherwise specified, tolerances: decimals .010, angles 1/2, Add H , X or Y before first dash number for Half Hinge without Pin.

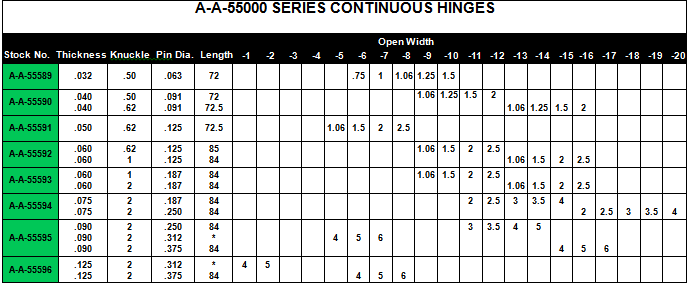

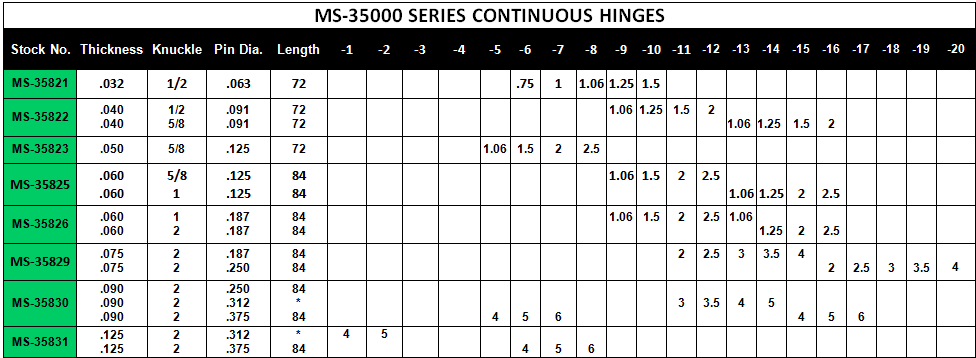

    MS-35000 SERIES
    AA-55000 SERIES

    Click Here to Enlarge Charts

    MATERIAL

    (A). Aluminum-Leaf-Temper H24 or H34 half hard, per QQ-A-250/8. Aluminum-Pin -Temper, half hard per QQ-A-225/7.

    (B). Brass-Leaf-Alloy 268. temper half hard, per QQ-B-613. Copper-Pin-Alloy 260. temper half hard per QQ-W-321.

    (C). Corrosion Resisting Steel-Leaf Class 301, 302, or 304. Condition A temper annealed , per QQ-S-766. Corrosion Resisting Steel-Pin-Form 1,Condition B, per QQ-W-423.

    (D). Carbon Steel-Leaf-Cold-rolled, temper No. 4, per QQ-S-698. Carbon Steel-Pin composition 1010, 1020 per QQ-N-461.

    (E). Carbon Steel-Leaf-Cold-rolled, temper No. 4, per QQ-S-698. Copper-Pin-Alloy 260, temper half hard, per QQ-W-321.

    FINISH

  • Materials A, B, C and D shall be plain (uncoated).
  • Materials D when specified, shall be zinc plated type II Class 2
      of QQ-Z-325 or Cadmium plated type II class 1 of QQ-P-416.
  • Materials E shall be cadmium plated type II Class 1 of QQ-P-416.

    DIMENSIONS

    All dimensions are in inches unless otherwise specified.

    PART NUMBER

    The MS part number consists of the MS number plus the dash number followed by the applicable letter for material.

    Example: MS35821-6A or MS35821-8D.
    When protective finish is required for "D" materials, add "F" to the dash number.

    Example: MS35821-8DF.

  • AN-251 HINGES
  • AN-253 PINS
  • MS-20253 PINS
  • MS-27990 PINS
  • NAS-40 EXTRUDED
  • AN-252 EXTRUDED
  • AN-250 BUTTS
  • MS-7524 HINGES
  • MIL-H-1237 BUTTS

    *ALL HINGES CUT TO SIZE, PIERCED OR FORMED TO PRINT
