Northeast Hinge Distributors, Inc.

Latch, Spring Release, Slam




Latch Hinges
Spring Release Hinges
Heavy Duty Spring Latch
Slam Latch

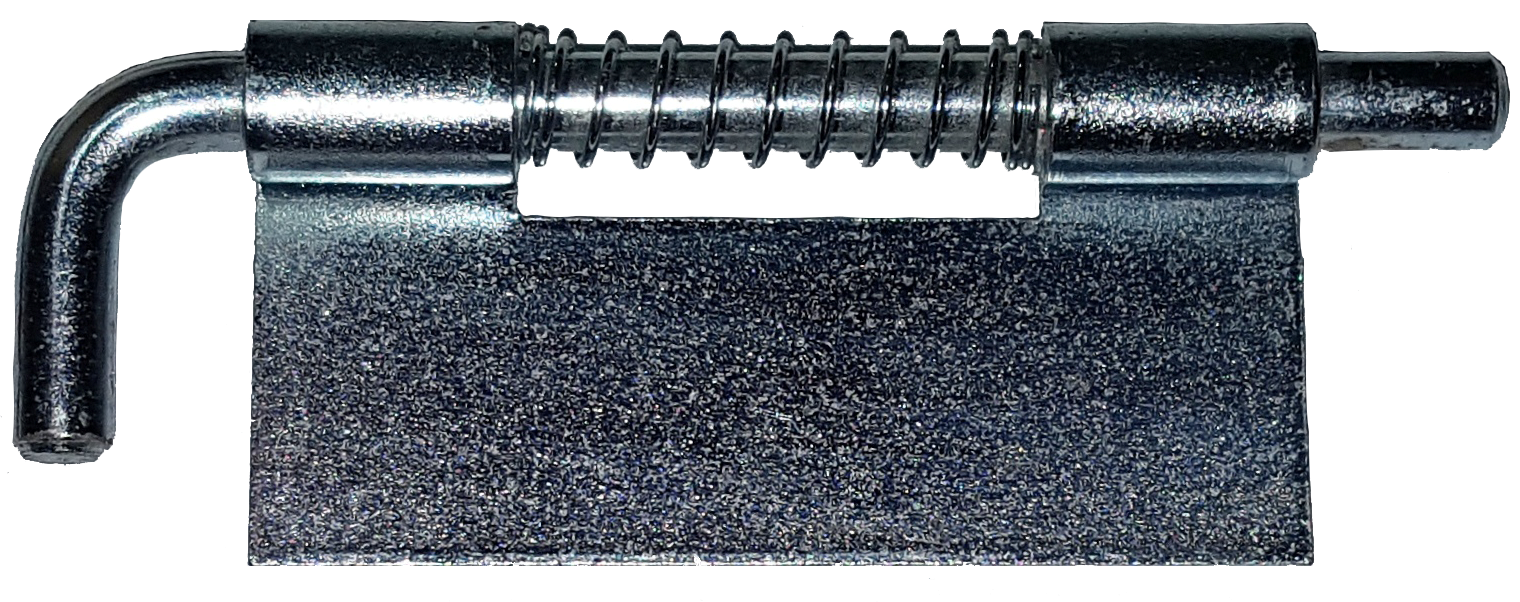

LATCH HINGES

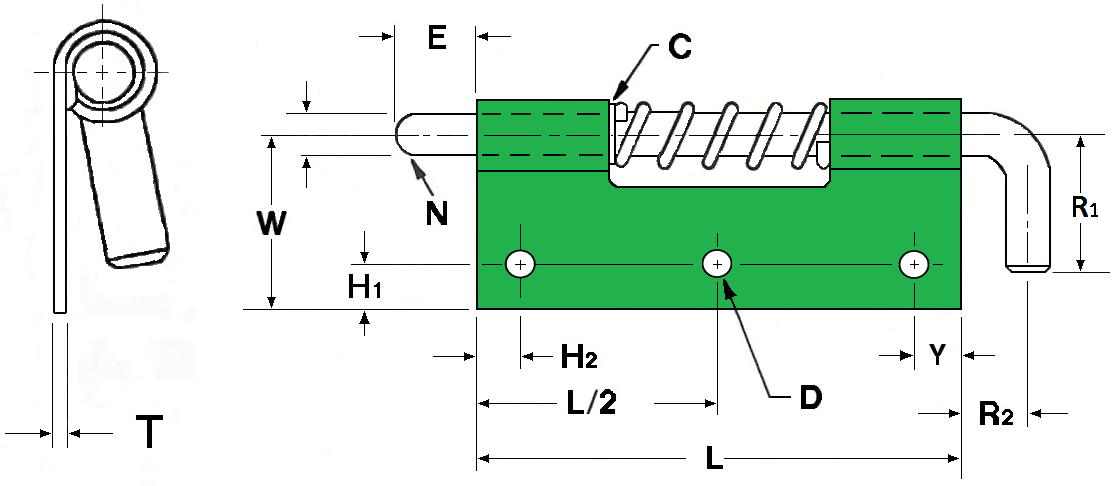

latch hinge diagram

DIMENSIONS (STANDARD SIZES SHOWN)
* SPECIALS AVAILABLE UPON REQUEST



PART NO.

711

712

713

714

L

*W



T

Body Length

Body Width (A)

(B)

Body Thickness

.875

.375

.500

.035

1.375

.500

.750

.040

2.000

.625

.875

.050

2.750

.750

1.000

.060

P

*E

R1

R2

Pin Diameter

Pin Extension

Handle Length

Handle Extension

.125

.187

.437

.187

.156

.250

.625

.250

.187

.675

.687

.312

.250

.500

.812

.375

*H1

*H2

D

Hole Location

Hole Location

Hole Diameter

.156

.156

.128

.187

.187

.128

.187

.250

.128

.250

.250

.128

*Demensions can be altered to meet your specifications

Click Here to Enlarge Charts

POINT STYLE

latch point styles

MATERIAL

BODY

Steel (1010)(S)

Stainless Steel (302) (C)

Aluminum (A)

PIN

Steel (12L14)

Stainless Steel (302)

Aluminum (5052)

SPRING

Steel (1065)

Stainless Steel (302)



C-RING

Steel (1060)

Stainless Steel (AISI632)



FINISH

Zinc



Anodized(Aluminum)

Click Here to Enlarge Charts

MODELS

Available in Right Hand (R) or Left Hand (L) models. Special Forms, Offsets, Swaging or Welding Projections available. Latch can be furnished assembled, unassembled or body only.

ORDERING INFORMATION

PART #

MATERIAL

MODEL

BODY WIDTH

POINT STYLE

711

S (Steel)

R (Right Hand)

A (See Design)

1 (90 Cone)

712

C (Stainless Steel)

L (Left Hand)

B (Spec.)

2 (Ball)

713

A (Aluminum)





3 (Bullet)

714







4 (Flat)









5 (60 Cone)

*Example 712CLA3
(1-3/8 Body, Stainless Steel, Left Hand, 1/2 Body Width, Bullet Point)

Click Here to Enlarge Charts

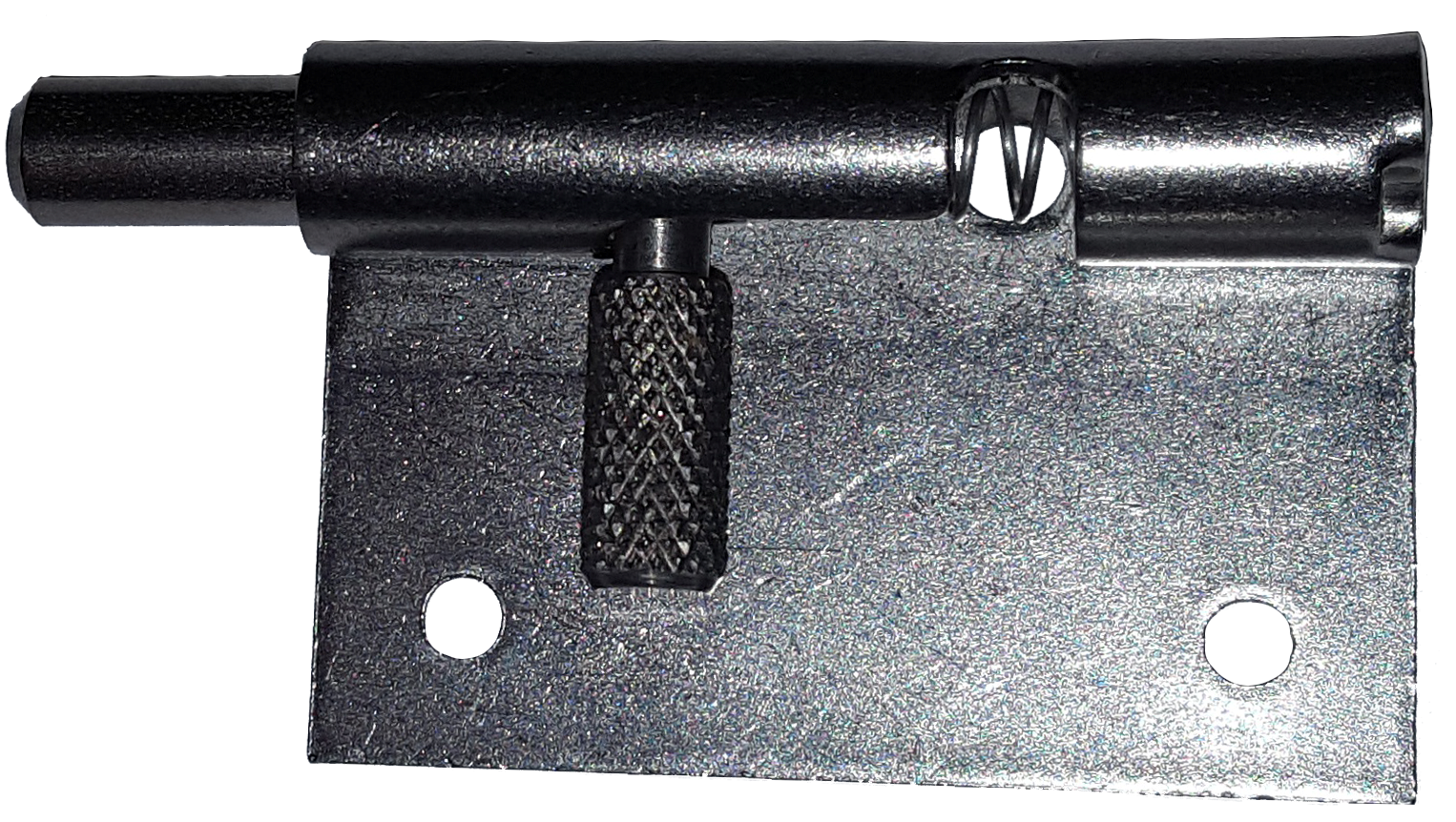

SPRING RELEASE HINGES

Spring release hinges combine a hinge and a latch in a standard piece of hardware. The spring release hinge has either a pair of spring-loaded handles or a single handle, which pulls toward the center to release the body or door from the keeper. An alternate style relies on a an engagement hole or slot in the adjoining surface. Installation is simple and inexpensive using screws, rivets or by welding. All styles are manufactured to close tolerances. End play and side play are held to a minimum, insuring a precision fit and smooth operation.

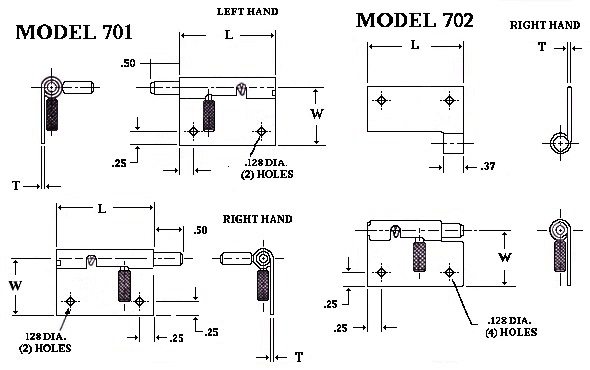

BODY







Standard

Special

L

Length

1.75



W

Width

1.00



Dash #



-1

-7





PIN





P

Pin Diameter

.250

.281

Special

T

Metal Thickness

.050

.062

Special

Dash #



-1

-2

-7





HOLES









None

Standard

Special

Dash #



-0

-1

-7





MATERIAL









Aluminum

Steel

Stainless

Dash #



-1

-2

-3





MODEL





R

Right







L

Left







FINISH

Most commercial finishes are available including zinc on steel, passivate or electro polish on stainless steel and anodizing aluminum.

Click Here to Enlarge Charts

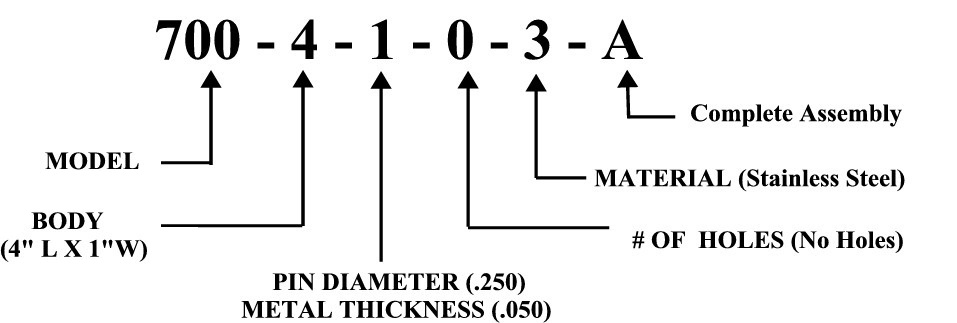

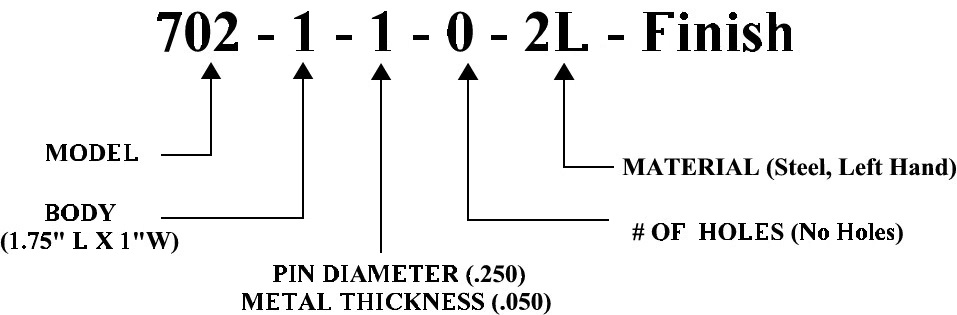

ORDERING INFORMATION

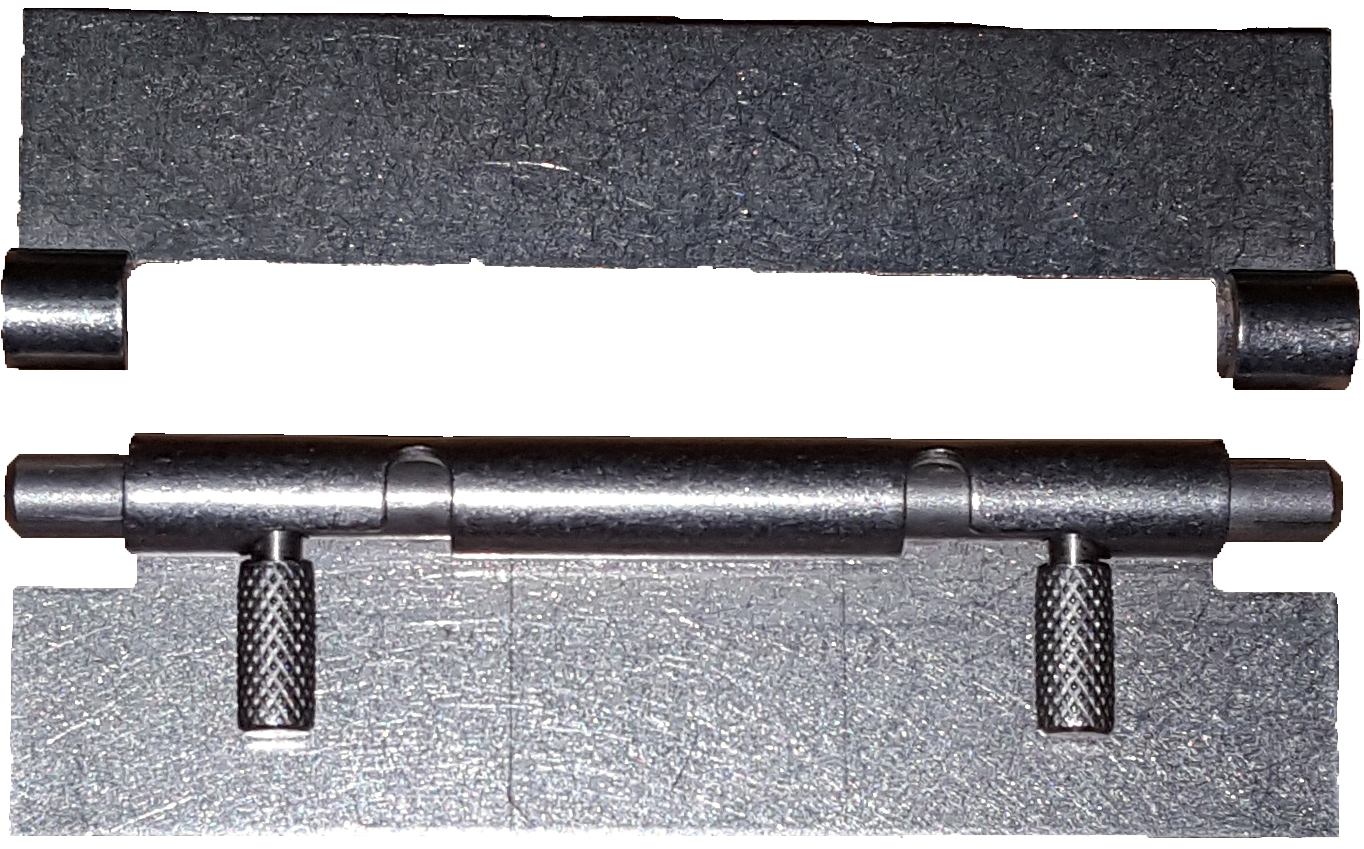

Combining a hinge and a latch is a standard piece of hardware.

The Spring Release Hinge has either a pair of spring-loaded handles or a single handle, which pulls toward the center to release the body or door from the keeper. An alternate style relies on an engagement hole or slot in the adjoining surface.

Installation is simple and inexpensive using screws, rivets or by welding.

All styles are manufactured to close tolerances. End play and side play are held to a minimum, insuring a precision fit and smooth operation.

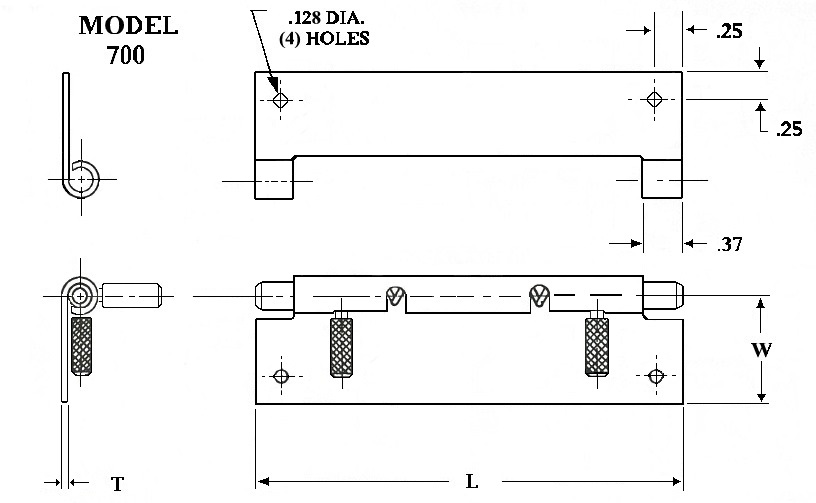

BODY







L

Length

3

4

6

Special

W

Width

1

1

1

Special

Dash #



-3

-4

-6

-7





PIN





P

Pin Diameter

.250

.281

Special

T

Metal Thickness

.050

.062

Special

Dash #



-1

-2

-7





HOLES









None

Standard

Special

Dash #



-0

-1

-7





MATERIAL









Aluminum

Steel

Stainless

Dash #



-1

-2

-3





MODEL











Male



Female

Complete

Assembly





-1

-2

-A

FINISH

Most commercial finishes are available including zinc on steel, passivate or electro polish on stainless steel and anodizing aluminum.

Click Here to Enlarge Charts

ORDERING INFORMATION

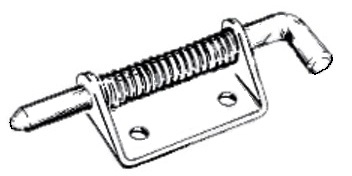

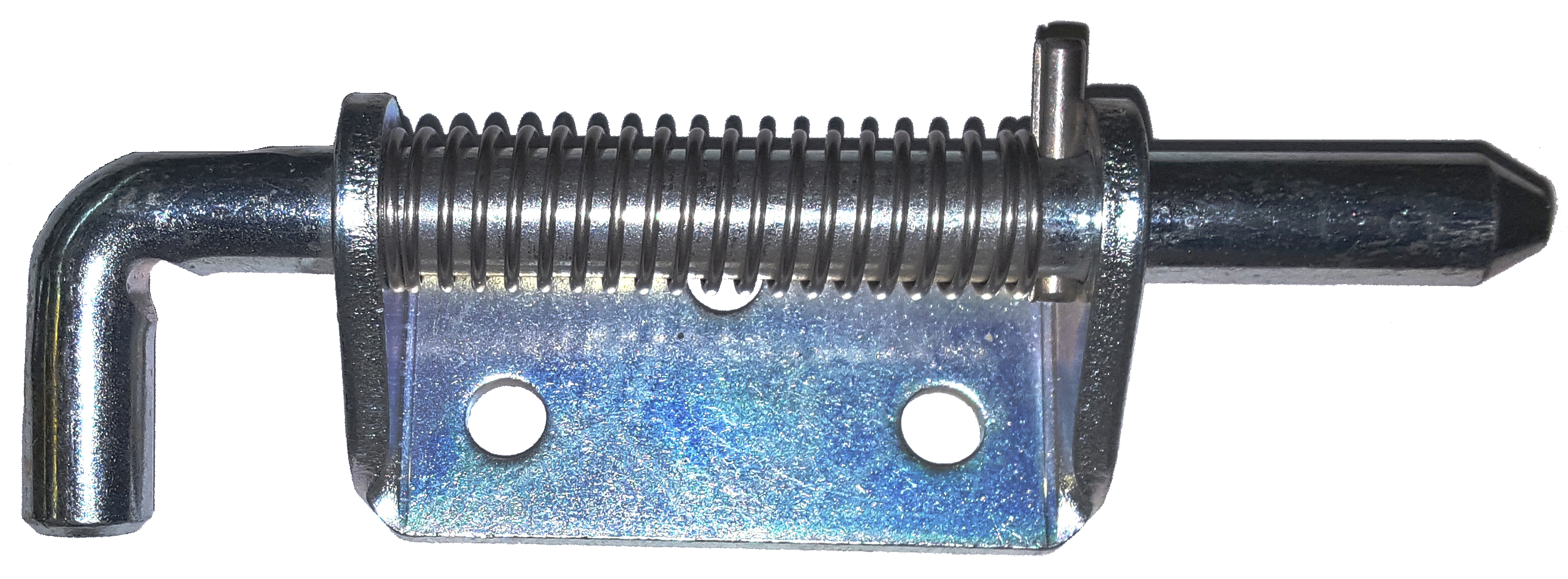

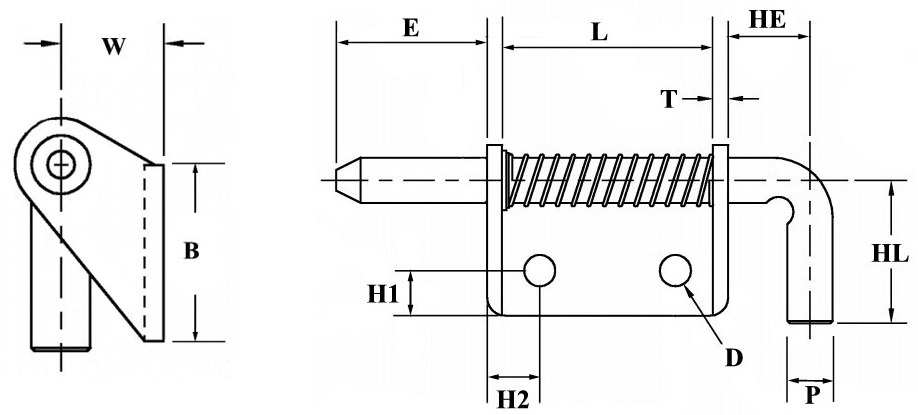

HEAVY DUTY SPRING LATCH

Available in 3/8" and 1/2" carbon steel pin diameters. These large rugged latches are available in steel or stainless steel and have a closed knuckle for added durabilty and strength.



HEAVY DUTY SPRING LATCH PART NUMBERS



719

720



P

E

HL

HE

PIN (01)

Pin Diameter

Extension

Handle Length

Handle Extension



.375

1.250

1.187

.687



.500

1.500

1.218

1.000



L

W

B

T

H1

H2

D

BODY(02)

Length

Width

Height

Thickness

Hole Location

Hole Location

Hole Diameter



2.000

1.125

.656

.12

.375

.437

.265



3.000

1.250

.750

.19

.500

.625

.328



C

S

MATERIALS

Stainless

Steel



R

L

U

MODELS

Right Hand

Left Hand

Unassembled

FINISH

Most finishes are available, including zinc on steel, passivate and electro-polishing on stainless steel, anodize on aluminum, and nickel on brass

Click Here to Enlarge Charts

ORDERING INFORMATION

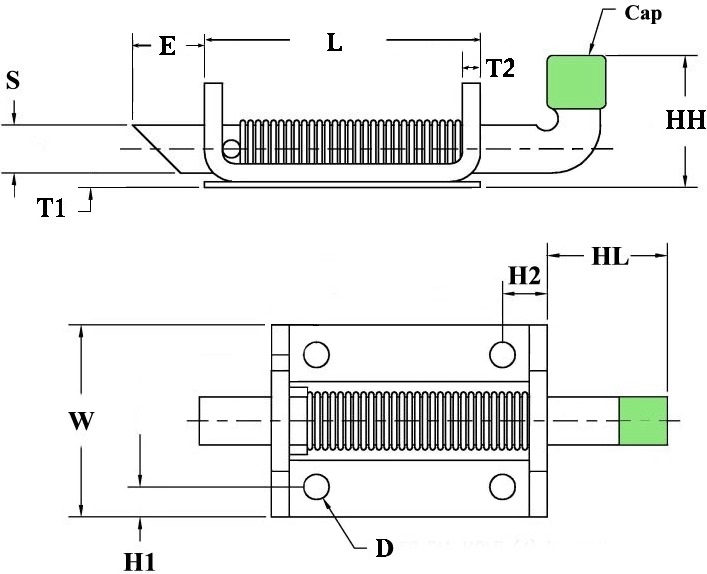

SLAM LATCH

Available in 3 sizes: 7/16", 3/8", and 1/2" carbon steel pin diameters. These rugged latches are ideal for doors, drawers, truck/trailer bodies, construction, farm equipment and all aircraft applications.



LATCH PART NUMBERS



707

708

709



S

E

HLHH

SHAFT (01)

Shaft Thickness

Extension

Handle Length

Handle Height



.375

.562

.812

1.000



.437

.750

1.000

1.250



.500

.750

1.250

1.375



L

W

T1

T2

H1

H2

D

BODY(02)

Length

Width

Thickness

Thickness

Hole Location

Hole Location

Hole Diameter



1.500

1.250

.115

.09

.187

.250

.171



2.000

1.625

.125

.12

.250

.375

.203



2.875

2.000

.150

.19

.312

.468

.203



C

S

MATERIALS

Stainless

Steel



FINISH

Most finishes are available, including zinc on steel, passivate and electro-polishing on stainless steel, anodize on aluminum, and nickel on brass

Click Here to Enlarge Charts

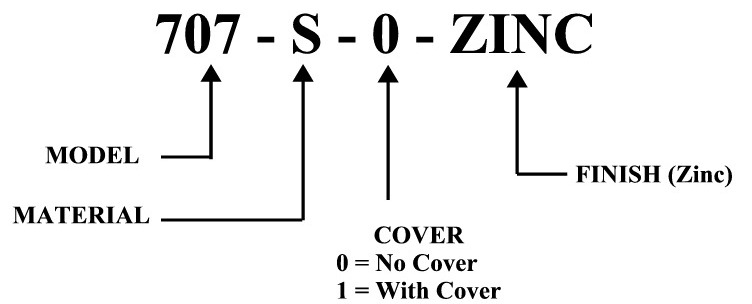

ORDERING INFORMATION
