WELD ON HINGES | BARREL WELD ON HINGES

Weld on hinges and barrel weld on hinges have many applications. We stock many sizes in steel, stainless and aluminum. Optional grease fittings prevent corrosion. Weld on hinges offer less side play and much better axial alignment than traditional hinges.

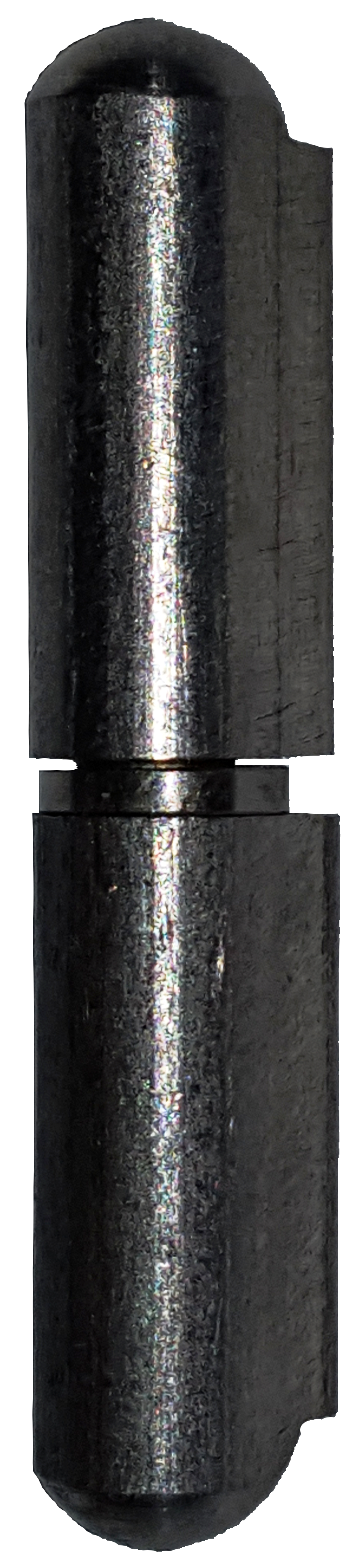

Weld on hinges have specially designed leaves for welding installation. All come with a bushing between the two leaves.

The weld on hinge can also be customized to meet your unique specifications.

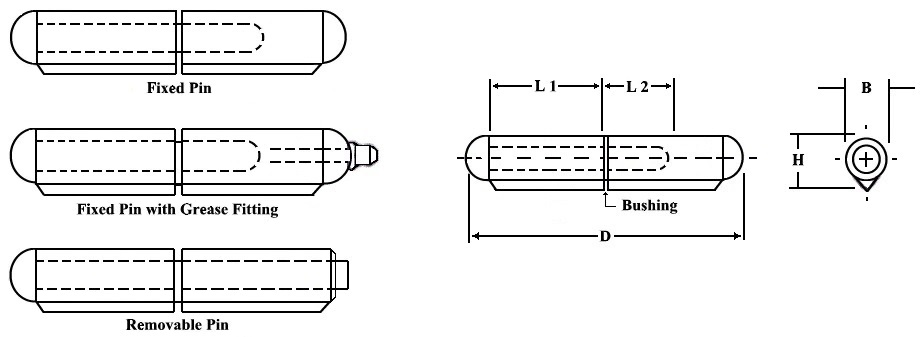

weld on hinge diagram

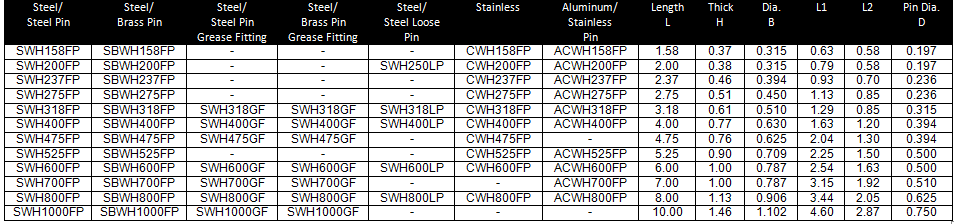

Click Here to Enlarge Chart weld on hinges chart
Note: All dimensions are in decimal inches. For steel hinges, bushing is brass. On stainless steel and aluminum hinges, bushing is stainless steel.
